Steel Stud Partition Wall Construction Guide & Material Calculation

In modern commercial and high-end residential renovations, lightweight steel stud gypsum board partitions have become the "backbone" of space division due to their light weight, high strength, fire resistance, and moisture-proof properties. However, many construction teams often face material accumulation or repeated reordering due to inaccurate material estimation. Even worse, improper techniques can lead to post-construction wall deformation and joint cracking. This article provides a comprehensive breakdown of the standardized construction process for steel stud partition walls and offers precision estimation formulas down to the last screw to keep your budget perfectly on track!

I. Core Components of the Partition Wall Stud System

Lightweight steel studs are cold-formed from continuous hot-dip galvanized steel sheets. Within a standard partition wall system, each component plays a dedicated role:

• Top and Bottom Tracks (U-channels): Fixed to the floor and ceiling to establish the boundary of the wall and secure the vertical studs.

• Vertical Studs (C-channels): Inserted vertically into the top and bottom tracks, serving as the "backbone" that supports the gypsum board or calcium silicate board.

• Bridging Channels (Continuous Horizontal Stiffeners) & Support Clips: Used to enhance horizontal rigidity and prevent wall shaking when the wall height exceeds a certain limit.

Quality Control Tip (Material Acceptance): Strictly control the stud thickness! According to national standards, the wall thickness of steel studs used for partitions must not be less than 0.6mm, and the galvanized coating must be uniform with no peeling.

II. Master Craftsmanship: The "7-Step Standard" for Partition Construction

As the industry saying goes, "Three parts material, seven parts installation." The life cycle of a steel stud partition wall depends entirely on the construction details.

Deep Dive into Key Procedures

1. Precise Layout and Positioning (The Key to Wall Verticality)

   Use a laser level or spirit level to project the partition wall centerlines and boundary lines onto the floor, walls, and ceiling. Note: If the wall height exceeds 3 meters, plan the positions of the bridging channels in advance. The spacing of fixing points must be kept within 1000mm, with the end distance not exceeding 100mm.

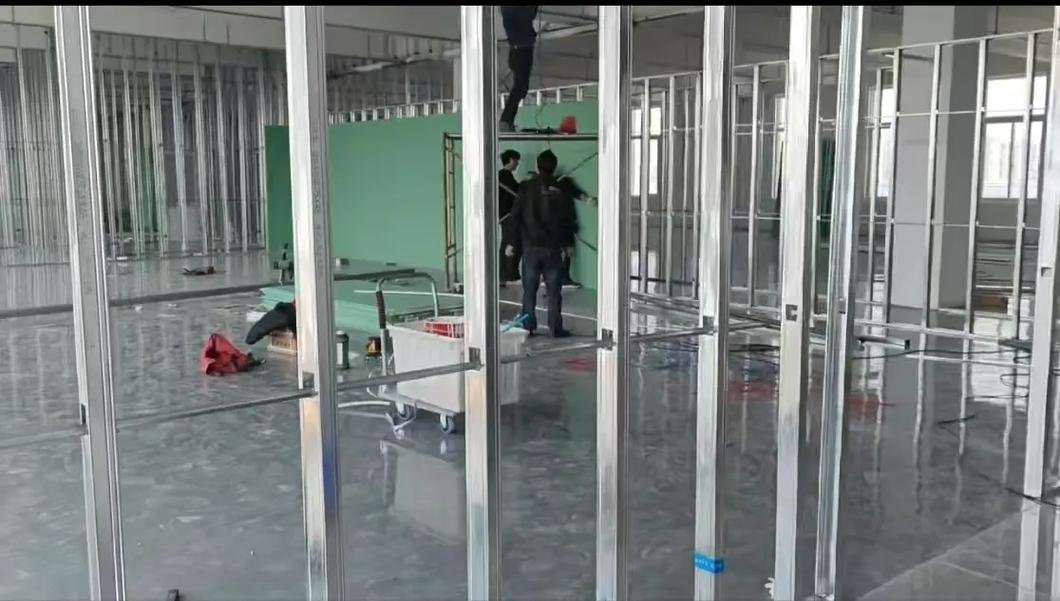

2. Track and Stud Alignment (Strictly Prohibit Forced Fitting)

   Fix the top and bottom tracks using expansion bolts or powder-actuated fasteners. Space the vertical studs (C-studs) according to panel specifications (typically 400mm or 600mm). The length of the vertical studs should be approx. 5mm shorter than the actual net ceiling height. Insert them into the tracks and secure them with rivets or self-tapping screws—never force-jam a stud, as it will cause warping.

3. Door and Window Opening Reinforcement (Preventing Future Vibration Deformations)

   Double vertical studs must be installed side-by-side on both sides of door and window openings. For the header above the opening, use two U-tracks nested back-to-back as a reinforced beam. Skipping this step will almost certainly lead to cracked joints over time due to the frequent impact of opening and closing doors or windows.

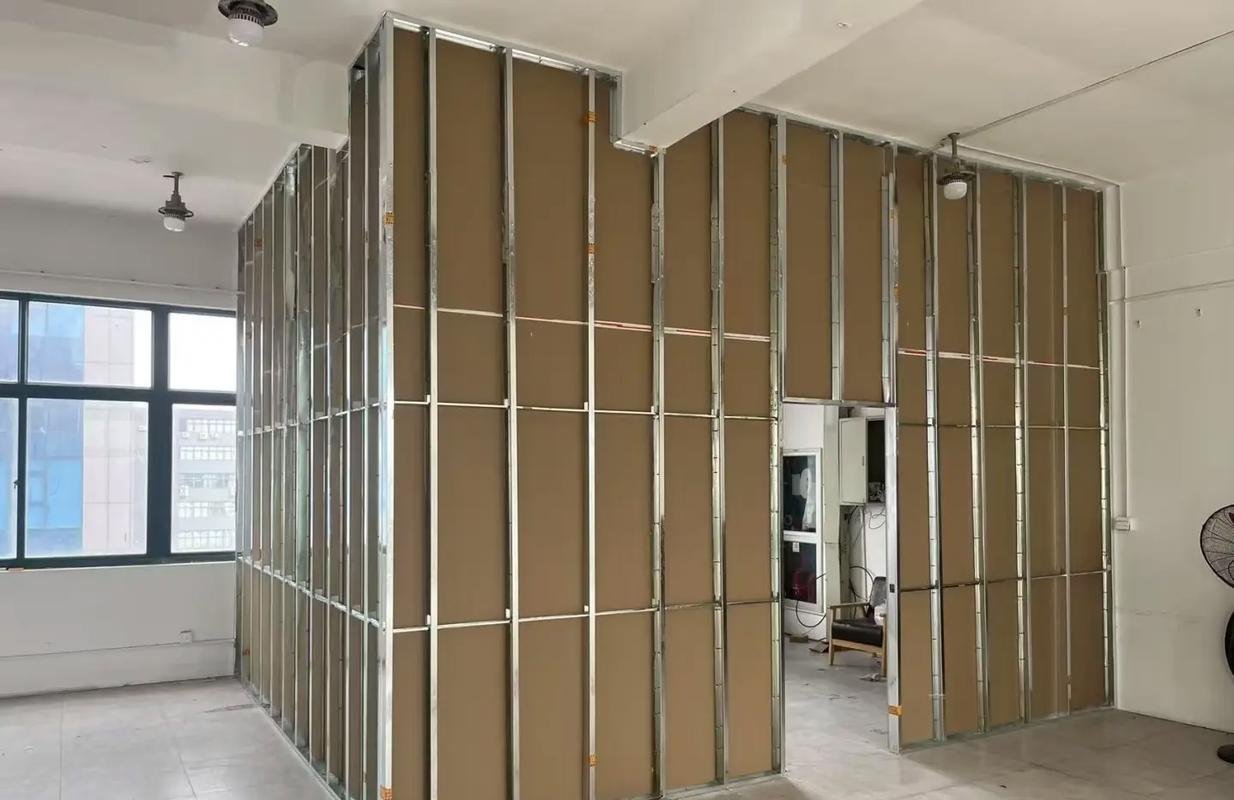

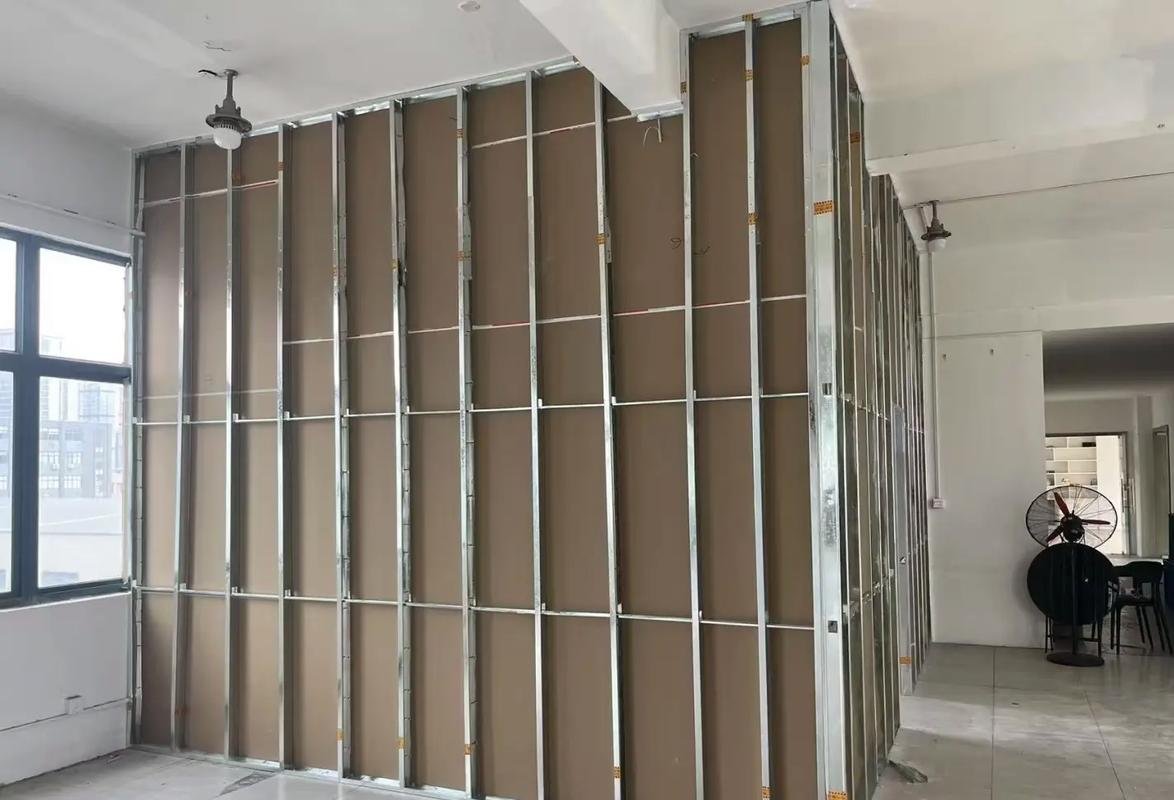

4. Staggered Panel Installation & Anti-Cracking (The Ultimate Detail to End Cracking)

   When fixing the gypsum board, space the self-tapping screws $\le 200\text{mm}$ at the board edges and $\le 300\text{mm}$ in the center. Screw heads must be countersunk 0.5–1mm below the board surface (be careful not to break the paper face).

   Core Industry Rule: Panels on opposite sides must be staggered (offset) so their joints do not fall on the same vertical stud. Leave a 3–5mm gap between boards, which will later be filled with high-strength joint compound and reinforced with fiberglass mesh or paper joint tape, followed by 2–3 coats of putty scraping.

III. Precise Estimation: Material Quantity Calculations At-A-Glance

The key to cost control lies in material management. We have condensed the tedious calculation process into straightforward mathematical formulas:

• Top/Bottom Track Length = Total Wall Length $\times 2$ (Floor + Ceiling)

• Number of Vertical Studs = $\lfloor \text{Total Wall Length} \div \text{Stud Spacing} \rfloor + 1$ (Add extra bridging channels based on the number of rows if the height exceeds 3 meters).

• Number of Panels = $(\text{Wall Length} \times \text{Wall Height} \times 2) \div \text{Area of a Single Panel} \times 1.05$ (Includes a 5% construction waste factor).

• Self-tapping Screws = Total Wall Area (Both Sides) $\times 35$ pcs/m²

Real-World Calculation Example

Take a standard partition wall that is 6m long, 2.8m high, with a 400mm stud spacing, and double-sided single-layer 12mm gypsum board:

Material Name	Specification / Formula	Estimated Quantity
Top/Bottom Tracks (U50)	$6\text{m} \times 2 = 12\text{m} \div 3\text{m/piece}$	4 pieces
Vertical Studs (C50)	$(6000 \div 400) + 1 = 16\text{ pcs}$ (Select 3m length for 2.8m height)	16 pieces
Support Clips	$16\text{ pcs} \times 2\text{ pcs/stud}$	32 pieces
Gypsum Board (12mm)	$6 \times 2.8 \times 2 = 33.6\text{m²} \div 2.88\text{m²/sheet} \times 1.05$	13 sheets
Self-tapping Screws	$33.6\text{m²} \times 35\text{ pcs/m²}$	Approx. 1,200 pcs
Joint Compound / Putty	Industry baseline consumption (approx. 1.5kg/m²)	Approx. 50 kg
Joint Tape	Corresponding to the total length of vertical and horizontal joints	Approx. 30 meters

IV. Quality Red Lines: Construction Control & Safety Defenses

Post-construction inspection is not just a formality. The following 4 "hard rules" must be strictly met:

1. Verticality & Flatness: Vertical stud deviation must be $\le 3\text{mm}$, and the finished surface flatness after boarding must be $\le 3\text{mm}$ (verified with a 2-meter straightedge).

2. Electrical Conduit Protection: All electrical wires running inside the steel stud wall must be protected by fire-retardant conduits (galvanized steel or PVC tubes). Direct contact or friction between bare wires and steel studs is strictly prohibited to prevent short circuits that could electrify the entire wall.

3. Acoustic & Thermal Optimization: For spaces requiring high sound insulation (e.g., conference rooms, bedrooms), acoustic dampening rubber pads must be installed between the tracks and the main building structure. Fill the internal cavity with rock wool featuring a density of $\ge 80\text{kg/m³}$.

4. Finished Product Protection: Do not impact the wall after boarding and before the joint compound is fully dry. Maintain an ambient construction temperature between $5\sim35^\circ\text{C}$ and relative humidity $\le 70\%$ to prevent the gypsum board from absorbing moisture and warping.
